The multifunction busbar processing machine, CNC busbar punching and shearing machine, CNC busbar servo bending machine, busbar arc machining center,CNC busbar press bending machine, etc. led by Shandong Gaoji Industrial Machinery Co., Ltd. are widely used in high and low voltage complete sets of enterprises and power transmission and distribution enterprises in the national power industry. Currently, the market share of Gaoji busbar processing equipment in the Chinese domestic market exceeds 70%, and it is also exported to countries such as Mexico, Uzbekistan, Turkey, and Russia.

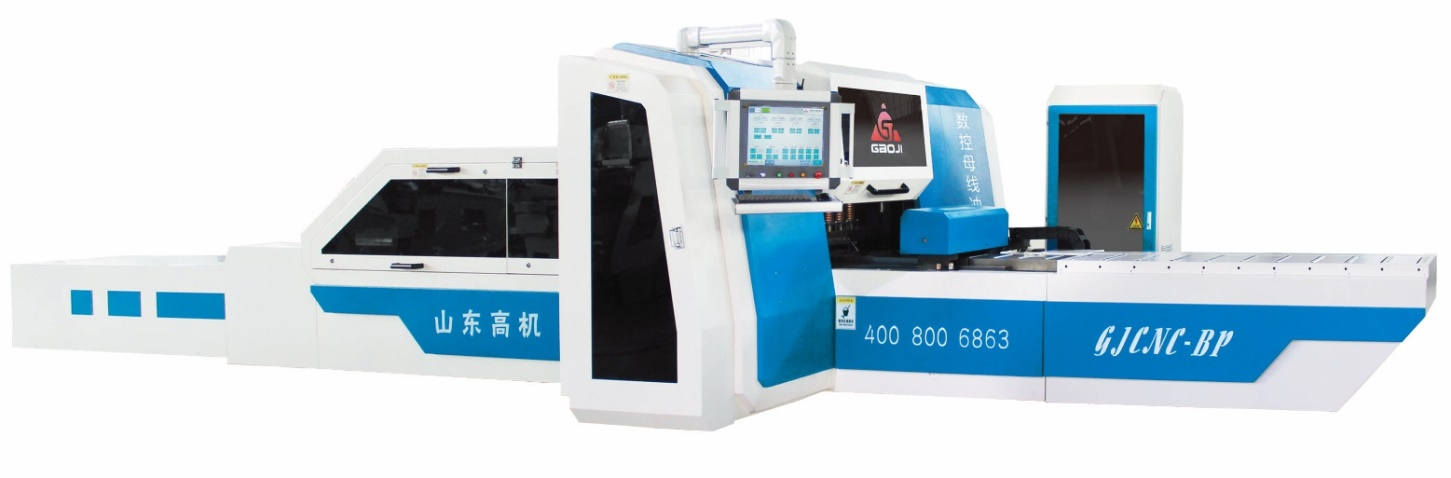

CNC Busbar Punching and Shearing Machine GJCNC-BP-60
The punching and shearing machine is used for processing busbar materials through chamfering, slotting, punching, corner cutting, embossing, edge trimming and cutting. During the processing of busbar materials, no manual intervention is required. It features high processing speed and high precision.
Two sets of main and auxiliary clamps work simultaneously, reducing the quality requirements for busbars and improving processing accuracy. During the processing, busbars are automatically clamped, saving labor and enhancing processing efficiency and accuracy. After processing, stainless steel drag strips are used to remove the workpieces, increasing efficiency and ensuring that the processed parts are not worn.

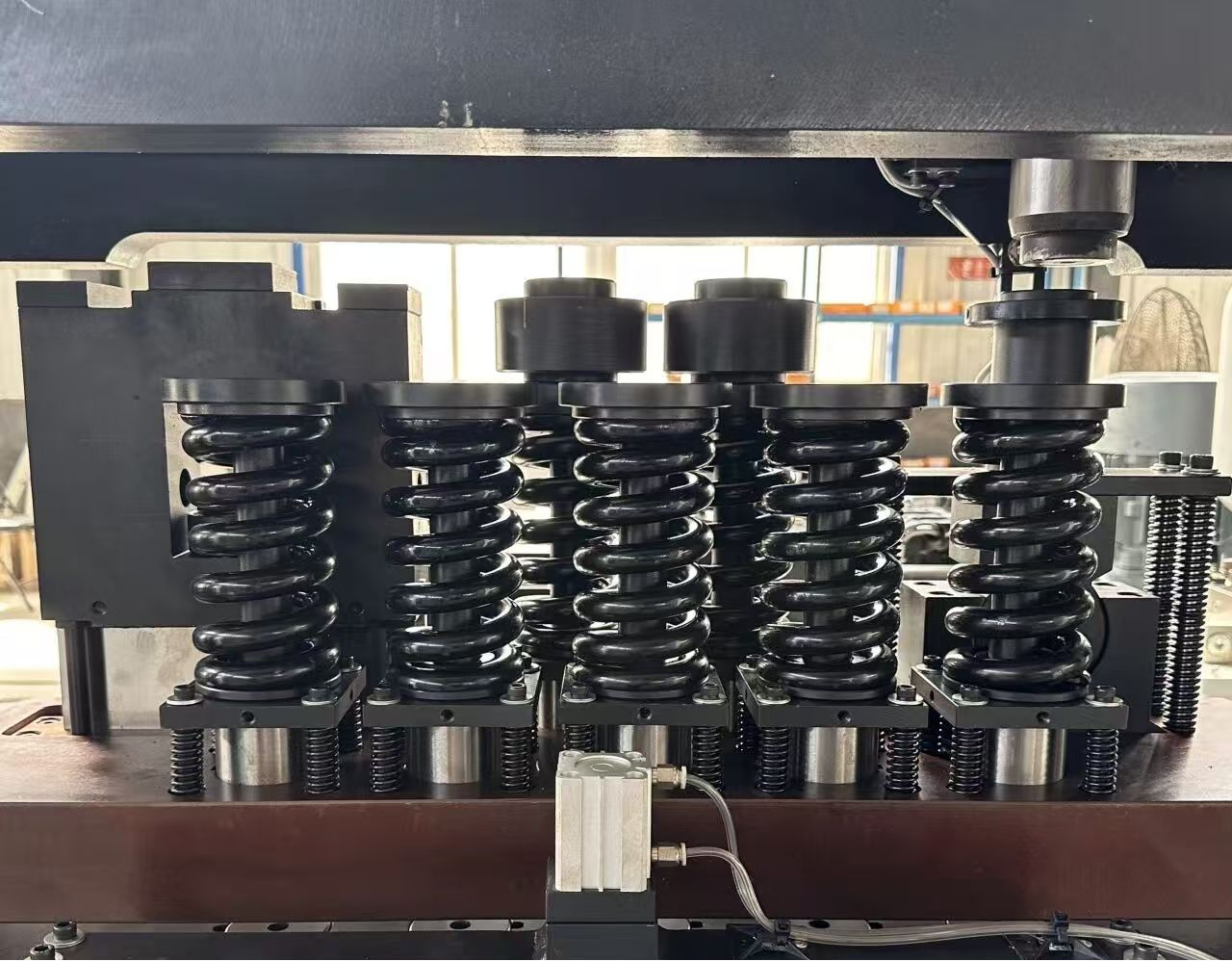

The overall structure is made of carbon steel plate welding, and has undergone high-temperature tempering treatment. The surface is subjected to shot blasting to eliminate welding stress and remove oxide scale. The equipment structure is sturdy, with solid materials, and is resistant to impact and does not deform even after long-term use. The mold library adopts a double-row structure, with a short Y-axis travel, which improves processing efficiency; dual power cylinders, with fast punching speed, large shear and embossing pressure, has nine sets of mold stations, using a complete pair of scissors, can complete the cutting of the main busbar in one go, improving processing accuracy, verticality of the cross-section and processing efficiency; it has dedicated embossing molds, with a large embossing area, increasing the contact area of the copper busbar, improving processing efficiency; the mold disassembly and installation are simple, safe and reliable, and convenient for mold replacement, providing a reliable guarantee for high production efficiency under frequent mold replacement conditions. The molds used can meet the requirements of accuracy and performance, with the impact frequency of the molds ≤ 50,000 times.
This machine is used in conjunction with an automated copper strip storage system, a fully automatic circular arc machining center, a laser marking machine, and a CNC busbar servo bending machine.It is also equipped with a busbar intelligent control system, which enables it to be linked to servers through MES, WCS, ERP, and PLM, thus forming an unmanned busbar processing factory system.
Centered on customers and with service as the principle, this is the original intention that Shandong Gaoji Industrial Machinery Co., Ltd. has always adhered to. From order confirmation, production manufacturing to loading and shipping, as well as subsequent support, we always prioritize the needs of customers and respond to every trust with wholehearted service throughout the process. Delivery is not the end, but a new starting point for service. In the future, we will provide more professional, efficient and comprehensive services to live up to the choices and commitments, and work hand in hand with customers to achieve mutual success.
