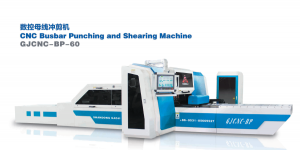

GJCNC-BP series CNC busbar punching & shearing machine is the computer-controlled equipment of high efficiency and high precision, specially used for busbar processing; Dies of punching, shearing and embossing are placed together in the storeroom of dies; It is capable of executing punching (round, oblong and other holes), embossing, shearing, slotting, round cornering and other processes;; Automatic clamp switching can be achieved without manual intervention for longer busbars. Finished work pieces will be sent out through the conveyor. Such machine series can be used in combination with the CNC busbar bending machine to form an assembly line of busbar processing.
GJ3D Programming Software: The software is the independently developed special aided design software (GJ3D XII). It can be connected to the Internet to realize the seamless link between automatic programming and processing. The software is a world-class pioneering product to apply 3D graphics technology in the busbar processing industry. With simple and quick operation steps, even those without related expertise can use it. It intuitively displays the processing shape of copper busbars, accurately calculates the exact position of punching, shearing and bending workpieces, and automatically generates machine code, shortening the time of manual code writing. Therefore, it is a good substitute to the conventional manual code writing software. It can display the entire process of punching, shearing and bending, thus preventing material waste due to manual code entry errors.
Main and auxiliary clamps: For one clamping, the maximum stroke of X Axis is 2000mm, and both the main and auxiliary clamps will operate simultaneously, which will lower the quality requirements on the flatness and bending of the busbar, thus improving the processing accuracy; during the processing, auto-clamping is obtained to save labor, and to improve the processing efficiency and accuracy;
Fast Hauling Belt: After the processing, the work pieces will be hauled away with the stainless steel hauling belt, so as to improve the efficiency and to protect the work pieces from wearing.
Touch Screen: Human-computer interface is easy to operate and reflects in real time the program execution. It has the function of displaying the alarm message of equipment operation, and allows the easy setting of die parameters and the operation of equipment.
High-Speed Operation System: This machine uses high-precision ball screws and linear guides to ensure the high precision and efficiency. Components and elements of national and world famous brands can provide longer service life and guarantee the quality.
Information Technology: The PLC (Programmable Logic Controller) supports a variety of communication protocols, has open data interfaces, and supports data transmission with the busbar intelligent control (production information management system), WMS, ERP and PLM systems, and the HMI operation platform is easy to operate. The machine is used in conjunction with automatic copper busbar warehouses, busbar arc dual power processing centers, laser marking machines, and automatic CNC busbar bending machines, and supports the link to the server through the busbar intelligent control (production information management system), WMS, ERP, and PLM systems to form an unmanned chemical factory system for bus processing.
